UniMed — IVF & Embryology Solutions

Series: AspiPump

Allwin Medical

AspiPump 90D

AspiPump 90D — AspiPump

IVF ConsumablesAspiPumpConsumables
Model:
AspiPump
Item code:
ASPI 90D · ASP-SB · ASP-HFS · +2 more
AspiPump 90D — 1AspiPump 90D — 2AspiPump 90D — 3AspiPump 90D — 4AspiPump 90D — 51 / 5

Specifications

Manufacturer
Allwin Medical Devices (Esco Lifesciences Group)
Line
AspiPump

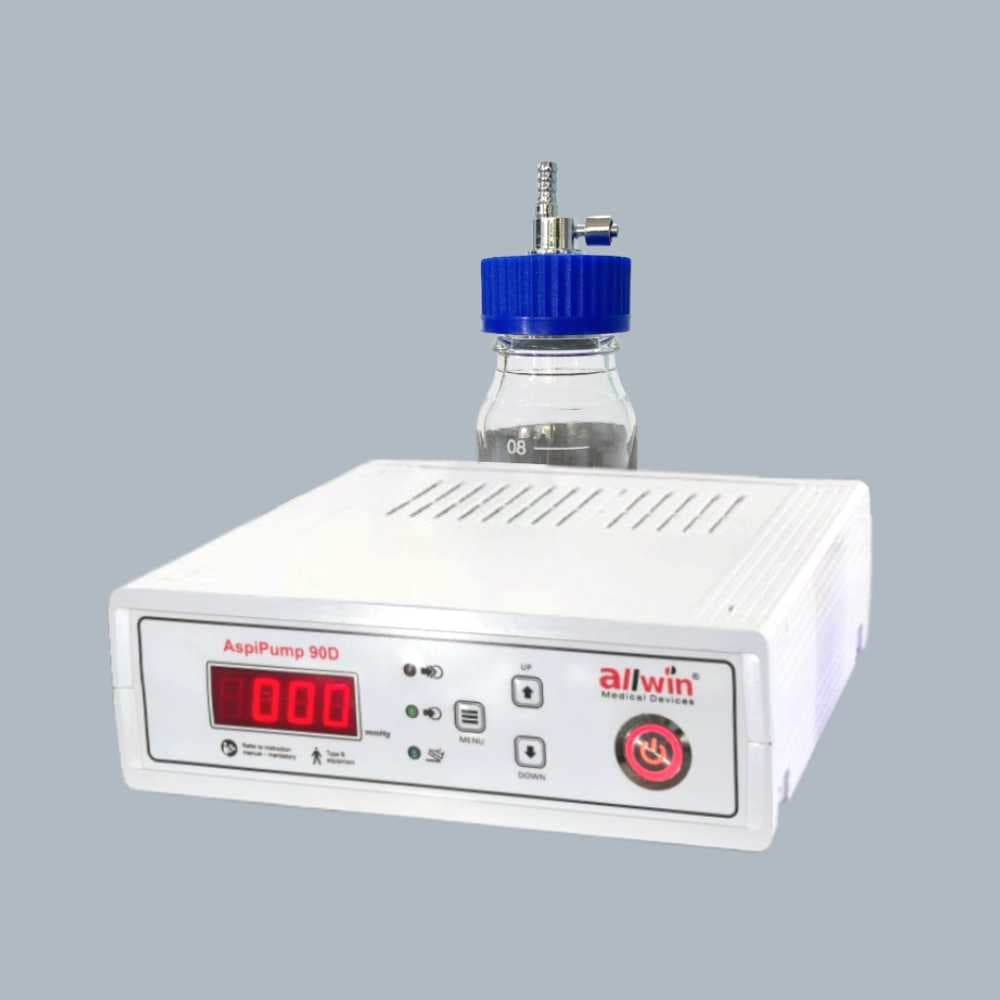

ASPI 90D
Description: AspiPump 90D Low flow / high vacuum DC operated pump, dual foot pedal, Aspi Suction Bottle with Connector (100ml), Aspi Suction Line with Luer Lock Connectors & Aspi Hydrophobic Filter Set, Universal adaptor. · Qty / Box: 1

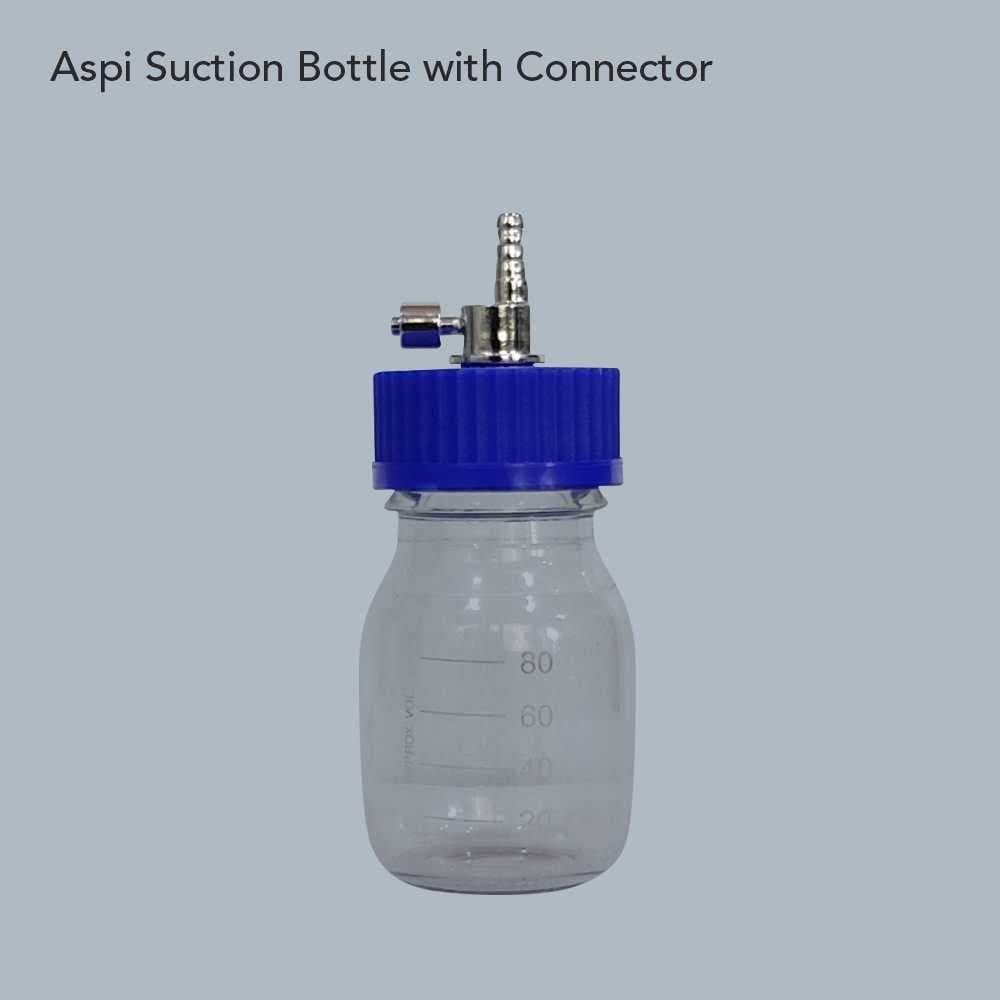

ASP-SB
Description: Aspi Suction Bottle with Connector Supplied with Allwin AspiPump 90D, Provided in cartons of 4 units. · Qty / Box: 4

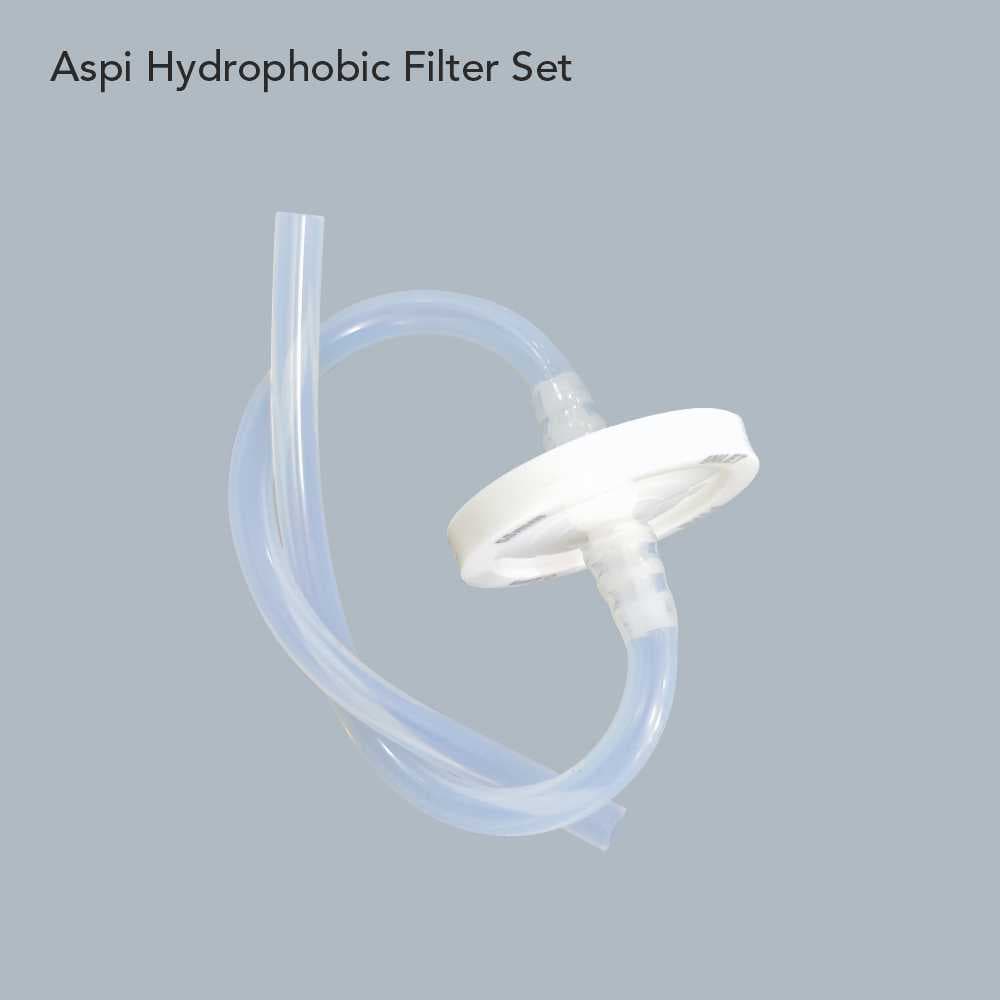

ASP-HFS
Description: Aspi Hydrophobic Filter Set Supplied with Allwin AspiPump 90D, Provided in cartons of 4 units. · Qty / Box: 4

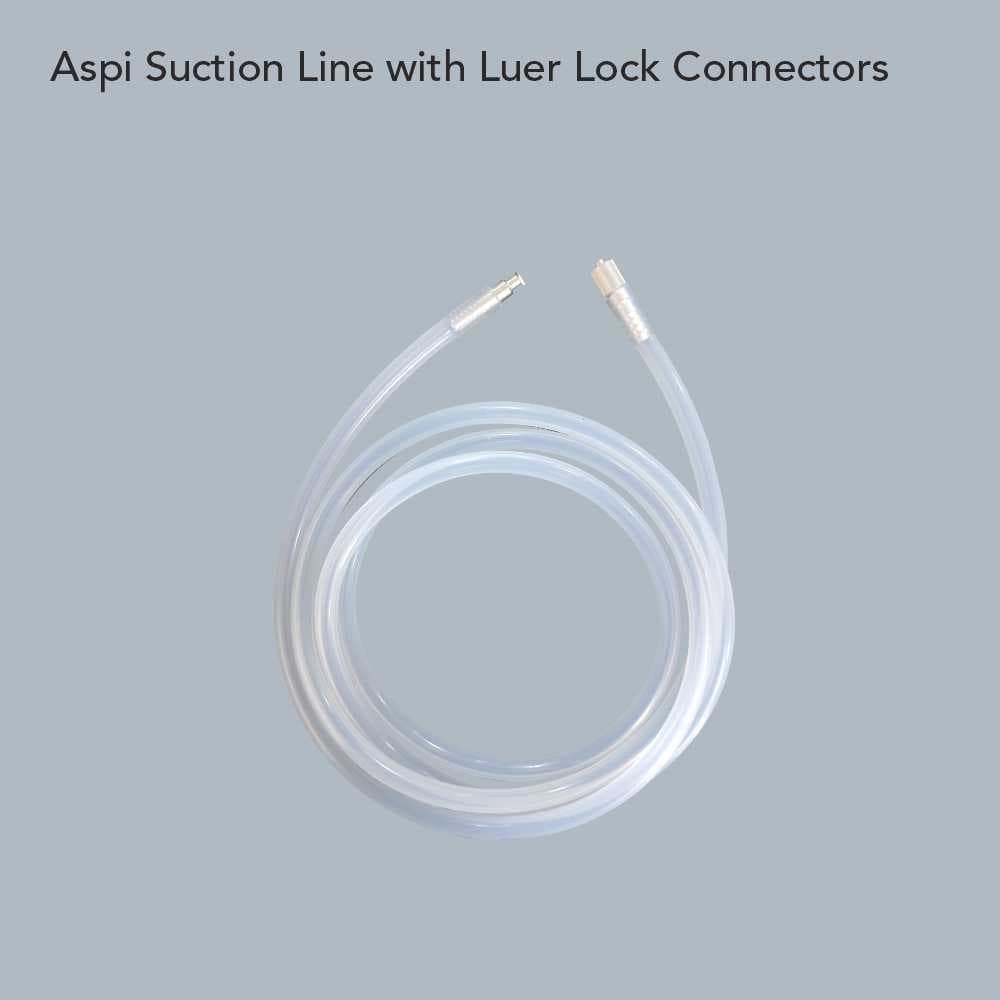

ASP-SL
Description: Aspi Suction Line with Luer Lock Connectors Supplied with Allwin AspiPump 90D, Provided in cartons of 4 units. · Qty / Box: 4

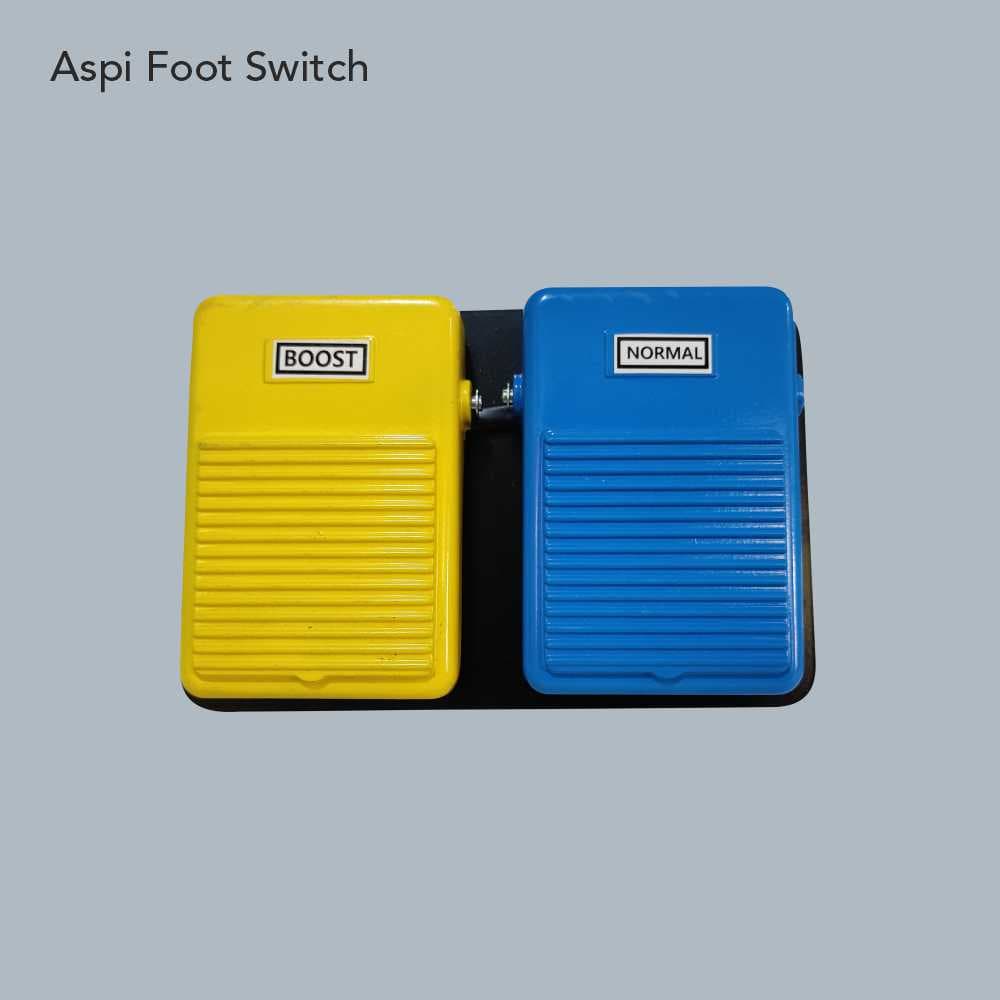

ASP-FS
Description: Aspi Foot Switch Suitable for Allwin AspiPump 90D. · Qty / Box: 1

5 order codes listed in specifications below. Product availability may vary by region. Contact UniMed Moldova for ordering and IFU.

Specifications

Manufacturer
Allwin Medical Devices (Esco Lifesciences Group)
Line
AspiPump
ASPI 90D
Description: AspiPump 90D Low flow / high vacuum DC operated pump, dual foot pedal, Aspi Suction Bottle with Connector (100ml), Aspi Suction Line with Luer Lock Connectors & Aspi Hydrophobic Filter Set, Universal adaptor. · Qty / Box: 1
ASP-SB
Description: Aspi Suction Bottle with Connector Supplied with Allwin AspiPump 90D, Provided in cartons of 4 units. · Qty / Box: 4
ASP-HFS
Description: Aspi Hydrophobic Filter Set Supplied with Allwin AspiPump 90D, Provided in cartons of 4 units. · Qty / Box: 4
ASP-SL
Description: Aspi Suction Line with Luer Lock Connectors Supplied with Allwin AspiPump 90D, Provided in cartons of 4 units. · Qty / Box: 4
ASP-FS
Description: Aspi Foot Switch Suitable for Allwin AspiPump 90D. · Qty / Box: 1
Request Quote

Workflow: Micromanipulation

Overview

• High vacuum, low flow pump capable of operating at normal vacuum levels ranging from -10mmHg to -300mmHg and boost vacuum levels from -300mmHg to -500mmHg, with adjustable vacuum settings in increments of -1mmHg. • Red LED display for easy readability. • Equipped with a dual foot pedal featuring color coding: Yellow for boost operation and blue for normal operation. • The Aspi Suction Bottle with Connector (100ml), Aspi Suction Line with Luer Lock Connectors (200cm), and Aspi Hydrophobic Filter Set. Specifications

Applications

  • Oocyte aspiration support
  • IVF / ICSI laboratories

Product features

Red

Red LED display for easy readability.

Equipped

Equipped with a dual foot pedal featuring color coding: Yellow for boost operation and blue for normal operation.

The

The Aspi Suction Bottle with Connector (100ml), Aspi Suction Line with Luer Lock Connectors (200cm), and Aspi Hydrophobic Filter Set.

Feature 4
